Arduino Flow Meter Code: C++ Scripts for Processing Transducer Pulse Frequency
Quick Answer: An Arduino can read a pulse output from an industrial flow meter using interrupts. Convert the measured pulse frequency to flow rate with the K factor. This method works well for bench tests, OEM prototypes, and small water skids. For custody transfer or hazardous areas, use a certified PLC or flow totalizer.
What This Code Does in a Real Flow Meter Setup
Many flow meters from Silver Automation Instruments include a pulse output. Electromagnetic, vortex, turbine, and oval gear meters can send a square wave frequency proportional to flow. The Arduino sketch captures that frequency and calculates flow rate in liters per minute or cubic meters per hour.
We have seen this on customer sites many times. A water treatment contractor in Malaysia used an Arduino Uno to bench test three electromagnetic flow meters before installation. A paint manufacturer in Vietnam used a similar setup to check oval gear meters on a filling line.
Pulse Output Basics for Industrial Transducers
Most industrial pulse outputs are open collector NPN or PNP types. Some meters use 0-5V logic. The frequency range depends on meter size and flow range.
Electromagnetic flow meters DN15 to DN300 with pulse output 0 to 1000 Hz, accuracy ±0.5% of reading, and 4-20 mA HART or RS485 Modbus options.
Turbine flow meters DN10 to DN50 with K factor from 100 to 3200 pulses per liter.
Oval gear flow meters DN10 to DN50 for diesel, oils, and chemicals. Typical K factor ranges from 100 to 500 pulses per liter depending on size.
C++ Logic for Pulse Frequency Reading
There is no single universal code because each meter has a different K factor and output voltage. But the core logic is simple.
Use an interrupt on a digital pin. Count pulses over a fixed time window such as 1000 milliseconds. Read the pulse count, multiply by a time scale factor, and divide by the K factor. The result is flow rate.
For example, a DN25 turbine meter has a K factor of 120 pulses per liter. If the Arduino reads 60 pulses in one second, the frequency is 60 Hz. The flow rate is 0.5 liters per second. Convert that to 1.8 cubic meters per hour.
Most engineers skip this part on production jobs and use a PLC. But for a quick test or an OEM prototype, the Arduino hardware is low cost and the code fits in one page.
Signal Wiring Notes
A 24V industrial flow meter cannot connect directly to a 5V Arduino pin. Use a level shifter or an optocoupler board. Add a pull-up resistor of 4.7 kΩ to 10 kΩ on the pulse line. Keep the cable shielded if the run is more than 3 meters in a plant with VFD drives.
We have helped customers in Saudi Arabia and Indonesia debug noisy pulse signals. The issue

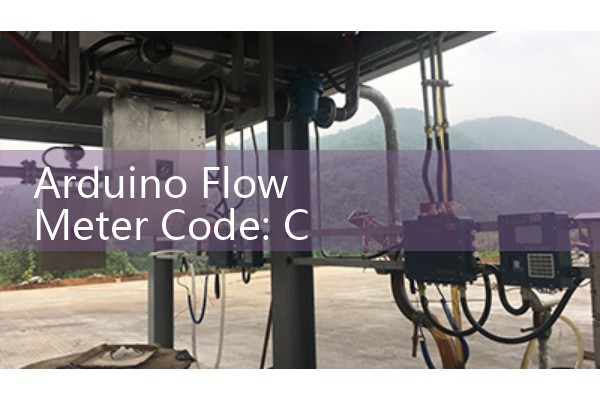

_600x400.jpg)
Where Arduino Fits and Where It Does Not
Arduino is fine for R&D, bench testing, water treatment skid prototypes, and small batch controllers. It is not suitable for custody transfer, ATEX Zone 1, or food grade CIP systems that need certified sensors.
For those jobs, Silver Automation Instruments supplies flow meters with 4-20 mA HART, RS485 Modbus, and pulse outputs that connect to PLC and SCADA systems. The flow meter stays the same. The controller changes.
Recommended Silver Automation Instruments Flow Meters
We recommend specifying a pulse output on these flow meter types:
Electromagnetic flow meters for water, wastewater, slurries, and chemicals. Sizes DN15 to DN300, liners in PTFE or hard rubber, electrodes in 316L, Hastelloy, or titanium. The liquid needs a minimum conductivity of 5 µS/cm for electromagnetic measurement.
Vortex flow meters for steam, compressed air, and saturated gas. Sizes DN15 to DN300, temperature up to 250 °C, pressure up to 40 bar. If you need mass flow in kg/h, add a pressure transmitter and a PT100 input to the PLC.
Oval gear flow meters for diesel, oil, solvents, and viscous fluids. Sizes DN10 to DN50, accuracy ±0.5% of reading, viscosity up to 1000 cP. They include pulse output or 4-20 mA.
Send us your pipe size (DN), fluid type, flow range, pressure (bar), temperature (°C), and preferred output. We will reply with a model and price.
Contact Silver Automation Instruments:
Tel: +86-135-1213-1526
Whatsapp: 86-135-12131526
WeChat: +86 13512131526
FAQ
Can I connect a Silver Automation Instruments flow meter directly to an Arduino?
Yes if you use a level shifter or voltage divider because the pulse output may be 12V or 24V.
What is a K factor?
It is the number of pulses per liter or per gallon. The K factor is printed on the calibration certificate for each meter.
Which flow meter type is best for low flow diesel measurement?
Oval gear flow meters work well for diesel, oil, and non water fluids at low flow rates.
Can I use Arduino in a hazardous area?
No. Use certified transmitters and a PLC or RTU rated for the zone.
Does Silver Automation Instruments provide custom pulse output settings?
Yes. We can set the pulse unit, pulse width, and frequency range before shipment.
Final note: For a quick Arduino test, all you need is a flow meter with pulse output, a level shifter, and the K factor. For production systems, use a PLC or totalizer. Send us your flow range and pipe size to get a quote from Silver Automation Instruments.
