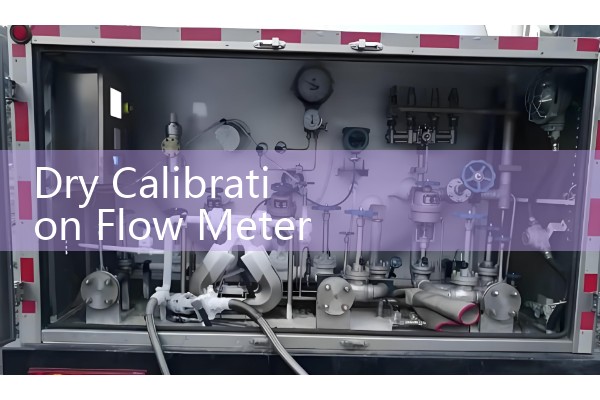

Dry Calibration Flow Meter: Field Validation Verification Without Fluid Master Loops
Quick Answer: Dry calibration checks the signal path and electronics of a flow meter without process fluid or a fluid master loop. Field validation then confirms sensor health, zero, span, and 4-20 mA HART output. Silver Automation Instruments supplies suitable Coriolis, electromagnetic, ultrasonic, vortex, oval gear, and thermal mass flow meters with dry calibration records.
What Dry Calibration Covers on a Flow Meter
Dry calibration is a bench test of the signal chain. A calibrated reference signal is injected into the transmitter. The output is checked against expected values. No water, oil, air, or process media flows through the meter. In a Coriolis meter, this covers drive gain, pickup coil symmetry, sensor resistance, and zero stability. In an electromagnetic flow meter, this covers electrode resistance, coil current, empty pipe detection, and analog output. In practice, many engineers use dry calibration before shipment to catch bad terminals, wrong settings, or damaged transmitter boards.
Dry calibration does not prove mechanical wear on gears or bearings. But it does prove that the transmitter and sensor communicate correctly. We have seen this on customer sites many times. A meter with a perfect wet calibration can fail startup because a connector is loose or the 4-20 mA loop is wired backwards. Dry calibration finds that issue quickly.
Why Field Validation Without a Fluid Master Loop Matters
A fluid master loop needs reference meters, pumps, temperature control, and clean test media. That setup is expensive for a 10 to 100 person plant. Most sites in Vietnam, Indonesia, Saudi Arabia, Chile, Nigeria, and Mexico do not have a spare master loop. Dry calibration plus field validation gives these plants a practical way to verify a flow meter before process startup.
Field validation includes sensor resistance check, coil or transducer impedance check, zero verification with an empty or blocked pipe, span trim, HART status review, and 4-20 mA loop test. Last year a paint manufacturer in Vietnam used a SIL-CMF series Coriolis meter on a 50 kg/h solvent line. The dry calibration values matched the field readings. The first real batch ran within 0.2 percent of the batch scale target. A desalination plant in Saudi Arabia used a SIL-EMF electromagnetic meter on a brine line. The team finished the loop test in half a day without wet brine flow.
Flow Meter Types and Dry Calibration Limits
Not all flow meters support the same dry calibration depth. Coriolis mass flow meters support the deepest electronic checks without process fluid. Electromagnetic flow meters allow electrode and coil checks on an empty pipe. Ultrasonic flow meters allow transducer impedance and signal gain checks. Vortex flow meters allow sensor capacitance and preamplifier signal checks. Thermal mass flow meters allow RTD resistance and heater current checks. Oval gear meters do not support a true dry mechanical check, but pulse output and display scaling can be verified.
So dry calibration is a signal and electronics validation. Dry calibration is not a replacement for wet calibration when fiscal accuracy is required. For custody transfer, batch charging, or low uncertainty measurement, a factory wet calibration on a certified rig is still needed.
Field Validation Procedure Without a Fluid Master Loop
Confirm the meter tag, model, pipe size, and calibration range against the loop drawing. Check the sensor terminals. Fo
Recommended Models and Parameter Pairings
For a chemical dosing skid at 50 kg/h and viscosity up to 100 cP, the SIL-CMF series Coriolis mass flow meter is a good match. For desalination plant brine at 8000 µS/cm, the SIL-EMF electromagnetic flow meter with PTFE liner and DN50 size covers the range. For boiler steam at 10 bar and 220 °C, the SIL-VF vortex flow meter with integrated PT100 compensation works well. For diesel transfer at 40 L/min, the SIL-OG oval gear meter keeps total accuracy within 0.5 percent. For compressed air at 6 bar, the SIL-TMF thermal mass flow meter reports mass flow without separate pressure and temperature compensation.
Each model supports 4-20 mA HART, RS485 Modbus, or pulse output. Explosion proof versions are available for ATEX Zone 1 or IECEx gas areas. Silver Automation Instruments includes a dry calibration report with each meter.
When Dry Calibration Is Not Enough
Dry calibration does not replace a wet calibration for custody transfer, fiscal metering, or tight batch accuracy. We tell customers this clearly before quoting. For a wastewater plant in Chile, we supplied electromagnetic meters with factory wet calibration in water. The dry calibration certificate was used only for startup and loop checks. That plant passed its performance test without adding a local master meter loop. But the wet calibration reference gave the plant confidence for regulatory reporting.
Frequently Asked Questions
Can dry calibration replace wet calibration?
Dry calibration cannot replace wet calibration for custody transfer or fiscal metering. Dry calibration covers transmitter signal, sensor circuit, zero, and output validation.
Which flow meter types support dry calibration best?
Coriolis, electromagnetic, ultrasonic, vortex, and thermal mass meters support meaningful dry checks. Oval gear meters support pulse and display checks only.
What parameters should I send for a quote?
Send us your fluid, pressure (bar), temperature (°C), pipe size (DN), flow range, viscosity, conductivity, and hazardous area class. We will recommend a model and calibration method.
Do you provide dry calibration certificates?
Yes. Silver Automation Instruments provides a factory dry calibration report with each meter. The report includes test values, reference equipment, date, and technician signature.
What if I need field validation support?
Call us at +86-25-68650347 or WhatsApp +86-25-52155837. We can review your field readings and recommend next steps without a fluid master loop.
Contact Silver Automation Instruments
Silver Automation Instruments supplies dry calibration flow meters to industrial end users and distributors in Southeast Asia, Oceania, Latin America, Africa, and the Middle East. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. Our team will reply with a model recommendation, dry calibration procedure, and price.
