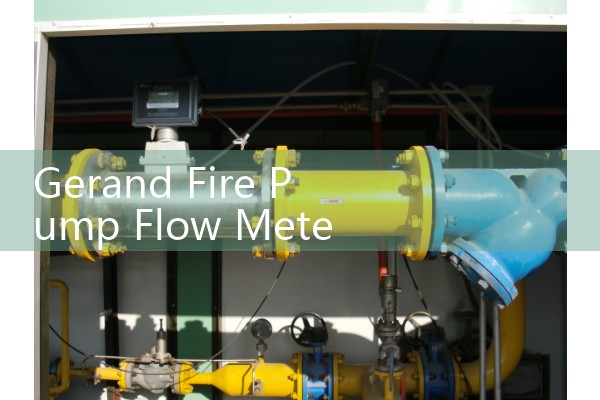

Gerand Fire Pump Flow Meter Testing: Meeting Annual GPM Verification Requirements Under NFPA 20
Quick Answer: Annual fire pump flow testing under NFPA 20 requires a calibrated flow meter that reads pump GPM at churn, rated flow, and 150 percent of rated flow. Silver Instruments supplies clamp-on ultrasonic flow meters and inline electromagnetic flow meters for this test. Send your pump rated flow, pipe size DN, and pressure class for a quote.
Why NFPA 20 Flow Testing Is Strict
Fire pumps protect buildings, refineries, and water plants. A pump that loses flow can cause a major failure. NFPA 20 covers stationary fire pump installation. NFPA 25 requires an annual flow test to confirm the pump still meets its original curve.
Most engineers skip the flow metering part until the inspector asks for GPM data. The test checks no discharge, rated flow, and 150 percent of rated flow. A flow meter that is too small or out of calibration gives false data. That can cause a failed inspection.
NFPA 20 GPM Verification Details
NFPA 20 does not name only one flow meter type. It requires test equipment that measures the full flow range with acceptable accuracy. Most authorities having jurisdiction, or AHJ, accept plus or minus 2 percent of reading. Some consultants specify plus or minus 1 percent.
The flow meter range depends on pump size. A 250 GPM pump may use a DN80 test header. A 5000 GPM pump often uses a DN300 header. The meter must cover at least 150 percent of rated flow. A 1500 GPM pump therefore needs a meter that reads up to 2250 GPM without losing signal.
Flow Meter Types for Fire Pump Test Headers
Clamp-on ultrasonic flow meters suit temporary tests. They strap onto the outside of a full pipe and need no cutting. This saves time for service contractors in Manila, Jakarta, or Lima. Straight run and clean pipe walls are important.
Inline electromagnetic flow meters suit permanent test loops. They offer no moving parts, good accuracy, and stable 4-20 mA HART output. They handle water and brackish water. Accuracy can reach plus or minus 0.5 percent of reading above 0.5 m/s.
A pitot gauge or turbine meter can work, but these have limits. Pitot gauges need careful insertion. Turbine meters have moving parts. We have seen false readings on dirty fire water. Digital flow meters give a stronger audit trail.
Specifying a Fire Pump Flow Meter
Start with the process data. Send the rated flow in GPM, pipe size in DN, pressure in bar or psi, and water temperature. Then d
One customer in Vietnam tested a 1500 GPM diesel fire pump on a DN150 schedule 40 header. They used a Silver Instruments clamp-on ultrasonic flow meter. The meter read 1518 GPM at rated point and 2246 GPM at 150 percent point. The AHJ accepted the data log and calibration certificate.
Calibration and Straight Run
Use a meter with a valid calibration certificate. The certificate should include test points near rated flow and 150 percent point. Keep it on site for the inspector.
Straight run matters. Allow 10D upstream and 5D downstream for clamp-on ultrasonic meters. Allow 5D upstream and 3D downstream for inline electromagnetic meters when possible. The pipe must be full. Avoid high points where air collects.
Silver Instruments Recommendation and Quote
Silver Instruments is a flow meter manufacturer and supplier for fire pump test loops. We offer clamp-on ultrasonic and inline electromagnetic flow meters. Both types support local display, 4-20 mA HART, and data logging. We serve fire protection contractors and industrial plants in Southeast Asia, the Middle East, and Latin America.
Send us your pump rated flow in GPM, pipe size in DN, pressure in bar, and signal output you need. We will recommend a model and send a quote within 24 hours.
Tel: +86-25-68650347
WhatsApp: +86-25-52155837
WeChat: +86 15365082610
Web: https://flow-meter.com.au
FAQ: Fire Pump Flow Meter Testing Under NFPA 20
Does NFPA 20 require a specific flow meter type? No. It requires reliable GPM verification. Clamp-on ultrasonic and inline electromagnetic meters are common.
How often must fire pump flow testing be done? NFPA 25 requires an annual flow test. The test checks churn, rated flow, and 150 percent of rated flow.
What accuracy does a fire pump flow meter need? Most AHJs accept plus or minus 2 percent of reading. Some projects require plus or minus 1 percent. Silver Instruments meters include calibration certificates.
Can a clamp-on ultrasonic flow meter work on fire pump pipes? Yes. The pipe must be full. Use clean steel or ductile iron pipe. Avoid scale and air bubbles.
What data should I send for a quote? Send rated flow in GPM, pipe size DN, pressure class, water temperature, output signal, and whether you need a temporary or permanent flow meter.
