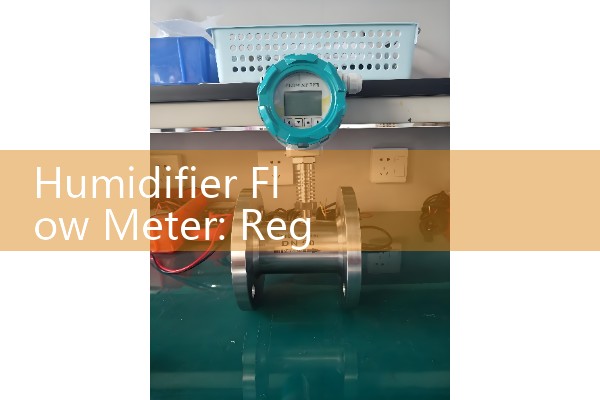

Humidifier Flow Meter: Regulating Water Feed Injection Rates for Industrial HVAC Climate Controls
Quick Answer
For industrial HVAC climate controls, a humidifier flow meter should measure the actual water feed injection rate. Silver Automation Instruments recommends an electromagnetic flow meter for conductive water above 20 µS/cm and an oval gear flow meter for demineralized or reverse osmosis water. Typical pipe sizes are DN10 to DN25 and typical flow ranges are 0.5 L/min to 40 L/min.
Send us your water conductivity (µS/cm), flow range (kg/h or L/min), pipe size (DN), temperature (°C), and pressure (bar). We will reply with a priced quote.
Water Feed Injection Rate Is Often Ignored Until Humidity Fails
In a humidifier, the control system knows the valve signal. It does not know the actual water feed rate. Minerals, small blockages, or pressure changes can shift the injection rate by 10 to 20 percent before the humidity sensor reacts.
In a pharma plant in Singapore, a clean room humidity drift of 5 percent RH caused a batch rejection. The root cause was a partially clogged water screen before the humidifier. The HVAC team replaced the valve twice before checking the actual feed rate.
Most engineers skip this part. They assume the valve curve is stable. In practice, water supply pressure varies. If city water pressure drops from 4 bar to 2.5 bar, the injection rate changes even at the same valve position. A small inline flow meter catches this immediately.
Flow Meter Type Depends on Water Conductivity
Do not guess the water quality. Water conductivity is the main selection factor for HVAC humidifier feed lines.
Electromagnetic flow meters work well when conductivity is above 20 µS/cm. Potable water, softened water, and most city water in Southeast Asia meet this. A DN15 electromagnetic flow meter can cover 0.5 to 40 L/min with an accuracy of ±0.5 percent of reading. It has no moving parts and does not add a large pressure drop. Use a 4-20 mA HART output for the BMS or PLC.
In demineralized water or reverse osmosis water, conductivity often falls below 5 µS/cm. An electromagnetic flow meter becomes unstable. Use an oval gear flow meter instead. A small oval gear meter on a DN10 or DN15 line can measure 0.1 to 10 L/min. It gives a pulse output and works well with water that has no solids. This is common in electronics plants in Vietnam and data center humidifiers in Dubai.
What Flow Rate and Pipe Size Should You Specify
For a steam humidifier in an office air handling unit, the water feed may be only 2 to 15 kg/h. In a paint manufacturer in Southeast Asia, a spray booth humidifier needed a feed rate of about 180 kg/h. For an evaporative humidifier, the water feed is often 0.5 to 8 L/min. The line size is usually DN15 or DN20. In some compact humidifier skids, DN10 is enough.
Do not oversize the flow meter. A DN50 electromagnetic meter on a DN15 line gives poor low flow accuracy. Match the meter size t
Installation Rules That Prevent Bad Readings
Install the flow meter in a flooded pipe. Do not mount it at the highest point where air collects. For electromagnetic flow meters, follow the straight run requirement from the supplier. We have seen many installations where the meter is placed 100 mm after a control valve and the reading swings. That is a piping problem, not a meter problem.
Use a strainer upstream if the water has particles. For oval gear meters, a mesh strainer of 100 microns or finer helps protect the gears. Keep the meter close to the humidifier. Long pipe runs between the flow meter and the humidifier create a lag that can confuse the control loop.
Output Signal and BMS Integration
Humidifier control panels often accept a 4-20 mA signal or a pulse signal. Some accept Modbus RTU. A 4-20 mA HART electromagnetic flow meter gives passive wiring convenience and can transmit totalized flow. Pulse outputs simplify dosing control for small batch humidifier systems.
We recommend a local display on the meter. It helps the maintenance team verify the actual feed rate without opening a laptop. In many HVAC mechanical rooms, the lighting is poor and the staff needs a direct reading.
FAQ: Humidifier Flow Meter Selection
Can I use one flow meter for multiple humidifier feed lines?
Yes, but only if the lines have a common manifold and the flow meter is installed before the branch. You will lose per humidifier accuracy. For critical climate controls, use one meter per major humidifier.
Does a humidifier flow meter require temperature compensation?
For water feed control, temperature compensation is not necessary. If you need mass flow in kg/h, the water temperature affects density by about 1 percent between 10 °C and 40 °C. Most HVAC controls accept that variation.
What is the minimum conductivity for electromagnetic flow meters?
Use 20 µS/cm as a practical lower limit. If the water is demineralized below 5 µS/cm, choose an oval gear flow meter.
Can these flow meters handle intermittent humidifier operation?
Yes. Oval gear and electromagnetic meters both respond quickly to start and stop. Make sure the meter is full of water when measuring. Empty pipe detection helps for electromagnetic meters.
What information do you need for a quote?
Send us water type, conductivity if known, flow range, pipe size, temperature, pressure, output signal, and whether the area requires ATEX Zone 1 or Zone 2. We will recommend a model and price.
