Hydro Gear Flow Meter: Hydrostatic Transmission Testing Checklists for Commercial Mower Repairs
Quick Answer: A Hydro Gear flow meter test checks oil flow and internal leakage before you tear down a commercial mower transmission. Use a high pressure oval gear flow meter rated for 400 bar and 0.2 to 18 L/min. If loaded case drain flow exceeds 15 percent of pump flow, inspect the piston block and valve plate first.
Why a Hydro Gear Flow Meter Finds Failures Before a Rebuild
Commercial mowers use Hydro Gear transmissions with a variable displacement pump and a fixed or variable motor. These units run hot and under high load. A mower can lose drive power because of a worn valve plate, a scored piston block, a charge pump fault, or air trapped in the inlet line. Most shops replace the belt and the oil first. But the real defect often hides inside the transmission case.
Flow testing gives you a number. That number shows volumetric efficiency. You measure pump delivery and internal bypass. You compare no load flow to loaded flow. You do not need to split the case to know if the pistons are bypassing oil.
Test Conditions Before You Start
Run the mower until the oil reaches 50°C to 60°C. Use SAE 20W-50 motor oil or the oil grade listed on the Hydro Gear tag. Check the oil level first. Foam in the reservoir will cause false low flow readings. Block the rear wheels and lift the drive wheels off the ground. Set the parking brake and keep the motion control levers in neutral when you connect the meter.
Use a hydraulic oil flow meter with mineral oil seals. Do not use a water meter. The meter must handle system pressure up to 400 bar if you plan to install it in the high pressure loop. If you only measure return flow, a lower pressure meter can work, but a high pressure meter gives you more test options.
Hydro Gear Flow Meter Testing Checklist
Step 1. Connect a Silver Instruments oval gear flow meter in DN10 or DN15. For full pump flow, install the meter in series with the pump outlet before the hydraulic motor. For internal leakage only, connect the meter on the case drain line from the transmission to the reservoir. Use hydraulic fittings rated for the pressure. Install a 0 to 600 bar pressure transmitter at the pump outlet. Connect the 4 to 20 mA signal to a digital display or a paperless recorder.
Step 2. Start the engine and set throttle to 3000 rpm. Move the lap bar forward slowly until the drive wheels reach full speed. Record the no load flow in liters per minute. For a ZT-3400 unit, no load flow typically sits between 8 and 12 L/min depending on tire size and motor displacement.
Step 3. Load the system with a needle valve or by applying the brake. Raise pump outlet pressure to 100 bar. Record flow again. The difference between no load flow and loaded flow is internal leakage. On a healthy ZT-3400, leakage stays below 2.5 L/min at 100 bar with oil at 50°C. If the meter is on the case drain line, read the leakage directly.
Step 4. Stall the wheel motor for a few seconds only. Do not hold a stall condition for more than 10 seconds. High oil temperature will damage the oil. Record the bypass flow. If the case drain flow jumps above 4 L/min, inspect the piston block and valve plate. This is not a filter problem.
Step 5. Repeat the same test in reverse. Compare forward and reverse flow. A diffe

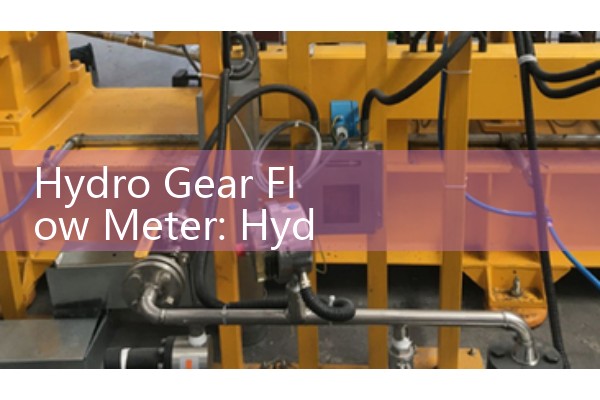

_600x400.jpg)
Step 6. Record all values. Write down the engine rpm, oil temperature, pressure setpoint, flow reading, and the direction. A paperless recorder with two channels makes this easy. One channel records flow. One channel records pressure. You can print the chart for a warranty claim.
What the Flow Numbers Mean
Low no load flow points to a charge pump or inlet restriction. High loaded leakage points to the piston block or valve plate. A flow drop only in reverse points to a check valve or a directional pilot issue. We have seen repair shops replace wheel motors because a flow test was not done. The real fault was the pump bypassing oil inside the case.
Last year a turf equipment repair shop in Queensland, Australia tested a ZT-3400 with weak left drive. The flow meter showed 5.2 L/min return flow at 95 bar. The shop found a scored valve plate. That one test saved the customer more than $1,400 in parts. The replacement part was the valve plate, not the entire transmission.
Recommended Silver Instruments Flow Meter for Hydro Gear Testing
Select a Silver Instruments oval gear flow meter with DN10 or DN15 connections. Choose a 0.2 to 18 L/min range for most zero turn mower transmissions. Ask for a 400 bar pressure rating and a 4 to 20 mA output with local display. Add a Silver Instruments pressure transmitter with a 0 to 600 bar range and 4 to 20 mA HART output. This pair gives you flow and pressure data in one record.
Send your pump flow range, oil viscosity, maximum working pressure, and DN size to Silver Instruments. You can reach us by Tel: +86-25-68650347, WhatsApp: +86-25-52155837, or WeChat: +86 15365082610.
FAQ on Hydro Gear Flow Meter Testing
What flow range does a Hydro Gear flow meter need?
Most Hydro Gear transmissions in zero turn mowers need a flow meter with a 0.2 to 18 L/min range. A DN10 or DN15 oval gear flow meter covers this range. The same meter handles case drain flow from 0.05 to 5 L/min.
Can I use a water flow meter on hydraulic oil?
No. A water meter cannot handle oil viscosity or the pressure spikes in a Hydro Gear loop. Use a high pressure flow meter with mineral oil seals and a 400 bar rating. Water meters also fail when oil reaches 50°C to 60°C.
Where do I connect the flow meter on a Hydro Gear transmission?
The easiest point is the case drain line between the transmission and the oil reservoir. For a full pump flow test, connect the meter in series with the pump outlet before the motor. Use DN10 or DN15 hydraulic fittings and open the system with the engine off.
What pressure rating should the flow meter have?
Use a flow meter rated for 400 bar if you test the high pressure loop. Return line testing can use a lower rating, but a 400 bar meter gives you more options. The meter body and seals must be compatible with hydraulic oil.
How often should a commercial mower transmission be flow tested?
Test once a year or every 500 hours for commercial mowing fleets. Test the transmission when you notice weak drive, high oil temperature, or a loss of power on slopes. A flow test before a rebuild prevents replacing good components.
