Flow Meter Network Communication Protocol Review: HART vs Ethernet/IP vs Profibus
Quick Answer: For most flow meter upgrades, HART is the practical default because it uses existing 4-20 mA wiring. Choose Ethernet/IP when you need fast data, large device counts, or Rockwell PLC integration. Profibus remains strong in Siemens-centric plants and hazardous areas, but new projects often lean toward Ethernet options.
The protocol decision matters more than some engineers expect. A flow meter with the wrong network interface can create data delays, extra converters, and longer commissioning. We have seen this on customer sites many times. A water plant in Vietnam installed 40 electromagnetic flow meters with plain 4-20 mA output. They later needed totalized flow, reverse flow alarms, and electronics temperature for each meter. Rewiring was not an option. HART solved the problem because it rides on the same two wires.
HART for flow meters: the workhorse on 4-20 mA loops
HART adds digital data to a standard analog current loop. The analog signal still carries flow rate as 4-20 mA. The digital layer carries additional variables such as total, temperature, density, and diagnostic status. Data speed is low, about 1.2 kbps. In practice, that means one value every 250 to 500 ms. Most process loops do not need more.
HART is common on Coriolis mass flow meters, electromagnetic flow meters, vortex flow meters, and oval gear flow meters. A paint manufacturer in Southeast Asia uses HART on oval gear flow meters for solvent batching. Each meter reports batch total, temperature, and flow rate over one pair of wires. The plant avoids extra cable runs and still gets the data. Silver Automation Instruments supplies these meters with 4-20 mA HART for ATEX Zone 1. Typical sizes range from DN15 to DN200. Pressure rating can be 40 bar or higher. Temperature goes up to 200 °C. Mass flow accuracy reaches 0.1 percent of rate. Flow range can reach 12,000 kg/h depending on line size.
Ethernet/IP when speed and device count matter
Ethernet/IP uses standard Ethernet cables, switches, and IP addressing. It works well in Rockwell Automation and Allen-Bradley PLC systems. Data rates are 10 or 100 Mbit/s. For a flow meter, that means short response time and easy access to many parameters at once.
But Ethernet/IP requires more planning. You need IP addresses, managed switches, cable routing, and some network security. Most engineers skip this for a single flow meter because one HART meter plus a USB modem is cheaper. But for 20 or more meters on a skid, Ethernet/IP saves commissioning hours and simplifies diagnostics.
An Australian food and beverage plant replaced older Profibus DP with Ethernet/IP on 25 Coriolis and electromagnetic flow meters. The control team wanted direct integration with an Allen-Bradley PLC and less cable from remote skids. Silver Instruments electromagnetic flow meters with Ethernet/IP were supplied in DN25 to DN600 sizes. Flow range covered 0.1 to 15 m/s. Accuracy was 0.2 percent of reading as an option.
Profibus DP and Profibus PA for process plants
Profibus has two main variants. Profibus DP runs on RS-485 at up to 12 Mbit/s. Profibus PA runs on MBP at 31.25 kbps and can be deployed in intrinsically safe loops. Profibus PA is still common in chemical plants and oil and gas terminals. Siemens PCS 7 and older S7 systems often use Profibus DP or PA as the backbone.

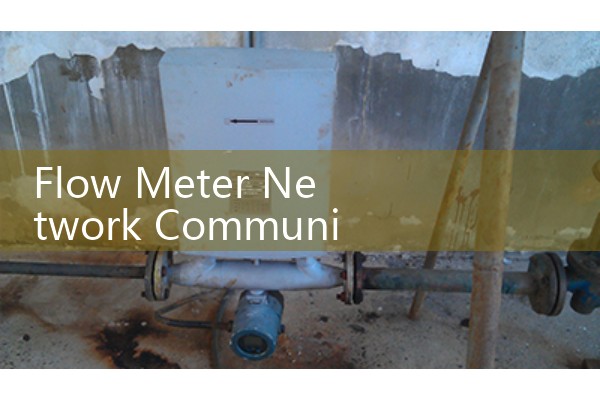

An oil terminal in the Middle East uses Profibus PA on Coriolis mass flow meters for custody transfer. Each meter sends mass flow, density, and temperature to the control room. The PA segment uses one twisted pair, and intrinsic safety is maintained f
_600x400.jpg)
Silver Automation Instruments offers Coriolis mass flow meters with Profibus PA, DN15 to DN200. Density range covers 0 to 3000 kg/m³. Pressure rating can reach 40 bar or higher. These meters are often used for fuel oil, asphalt, liquefied gas, and chemical batching.
Side-by-side comparison for flow meter projects
HART is the lowest cost option when 4-20 mA wiring already exists. It sends one fast analog signal plus slower digital variables. Ethernet/IP gives high speed and high data visibility. It suits skids, large plants, and Rockwell users. Profibus DP is fast on RS-485 but requires dedicated cable. Profibus PA is slower but works well in hazardous areas with intrinsic safety.
For a single flow meter, HART is usually enough. For a flow computer with fast batching, Ethernet/IP or Profibus DP may be required. For custody transfer in an oil terminal, Profibus PA is often the site standard. There is no universal best protocol. The choice depends on the PLC, the cable, the area classification, and the data rate you actually need.
How to choose without overpaying
Start with the control system. If the plant uses Allen-Bradley or Rockwell, Ethernet/IP is the natural fit. If the plant uses Siemens PCS 7 or S7, Profibus DP or PA may be easier to integrate. If the plant has older analog input cards, HART is the fastest retrofit because it does not need new fieldbus cards or cable.
Then count the variables. A simple flow rate is fine on 4-20 mA. Flow rate plus total plus density plus temperature points to HART or fieldbus. Fast closed loop control inside one second points to Ethernet/IP or Profibus DP. Hazardous area installation points to HART or Profibus PA.
FAQ
Can HART send flow and temperature at the same time?
Yes. The analog 4-20 mA signal sends the primary variable, usually flow rate. The HART digital layer can send temperature, total, density, and diagnostics. Digital update speed is slower than the analog signal.
Is Ethernet/IP better than Profibus for flow meters?
Not always. Ethernet/IP is fast and uses standard Ethernet hardware. Profibus PA is better for long hazardous area segments where intrinsic safety matters. Select the protocol that matches the existing PLC and site standard.
What cable does Profibus PA use?
Profibus PA uses a shielded twisted pair cable, often with a blue outer jacket. Segment couplers connect PA to DP or Profinet. Cable length can reach 1900 m in intrinsically safe installations with the right power supply.
Can I convert HART to Modbus or Ethernet/IP?
Yes. HART multiplexers and gateways can convert HART data to Modbus RTU, Modbus TCP, or Ethernet/IP. This is common when you keep existing HART flow meters and connect them to a newer PLC or SCADA.
Which protocol is best for hazardous area flow measurement?
HART and Profibus PA are both strong options. HART works with simple barriers and isolators. Profibus PA supports long intrinsically safe segments and multiple instruments on one spur. Ethernet/IP can be used, but it needs special care for spark prevention and network design.
Before you select a protocol, send us your process data. Include fluid name, pressure in bar, temperature in °C, pipe size DN, and flow range. Our engineers will quote a meter with HART, Ethernet/IP, or Profibus PA. Call Silver Automation Instruments at +86-25-68650347, WhatsApp +86-25-52155837, or WeChat +86 15365082610.
